Application

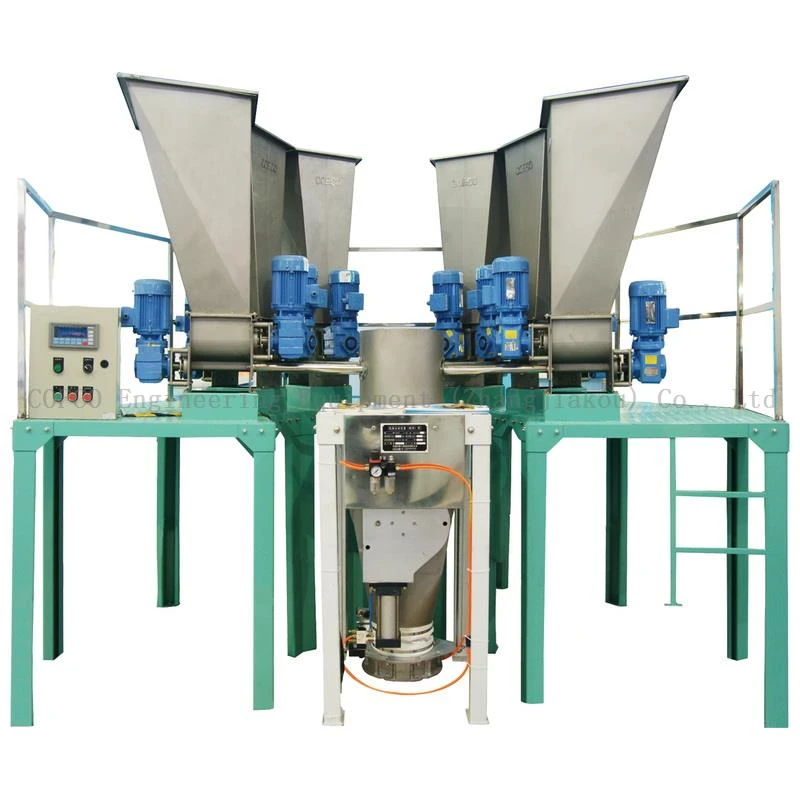

The Micro dosing machine Multi-Component Micro Dosing System is designed for accurate weighing and proportioning of powdered materials. Micro dosing machine is widely used in specialty flour blending lines, food processing plants, and other industrial applications requiring precise micro-ingredient addition.
The Micro dosing machine is particularly suitable for the addition of vitamins, enzymes, improvers, premixes, additives, and other trace ingredients in flour milling and food production processes, ensuring consistent product quality and formulation accuracy.
Features
Designed based on advanced international technology and optimized to meet the specific requirements of domestic flour blending and powder handling processes.
Provides highly accurate weighing and dosing of multiple powdered ingredients, ensuring precise formulation and product consistency.
Excellent dosing accuracy and long-term operational stability for reliable production performance.
All material-contact parts are manufactured from stainless steel, preventing contamination and ensuring food safety.
Rational structural design with an attractive appearance, compact layout, and easy integration into existing production lines.
Advanced control system with comprehensive functions for precise ingredient management and process control.
Particularly suitable for specialty flour production, helping ensure the accuracy and stability of micro-ingredient addition and improving final product quality.
Can be widely applied in flour mills, food factories, premix production, and other industries requiring precise micro-dosing of powdered materials.
Improves production efficiency, reduces formulation errors, and enhances product quality consistency.
Reliable and hygienic design that complies with the requirements of modern food processing operations.
|
Model |
TWCD10-3 |
TWCD10-4 |
TWCD10-6 |
|
Weighing Capacity/Batch |
10L (If the bulk density of material is 550kg/m³, the rated weight of each batch is 5kg) |
||
|
Accuracy |
≤±0.1%F.S Static (weight test) |
||
|
≤±0.2%F.S Dynamic (materials test) |
|||
|
Power |
0.25kw x2 xN ("N" means the number of proportioning device) |
||
|
Working Pressure |
0.4-0.6MPa |
||
|
Air Consumption |
0.3m³/min |
||
|
Working Environment Temperature |
-5℃-40℃ |
||
