Application

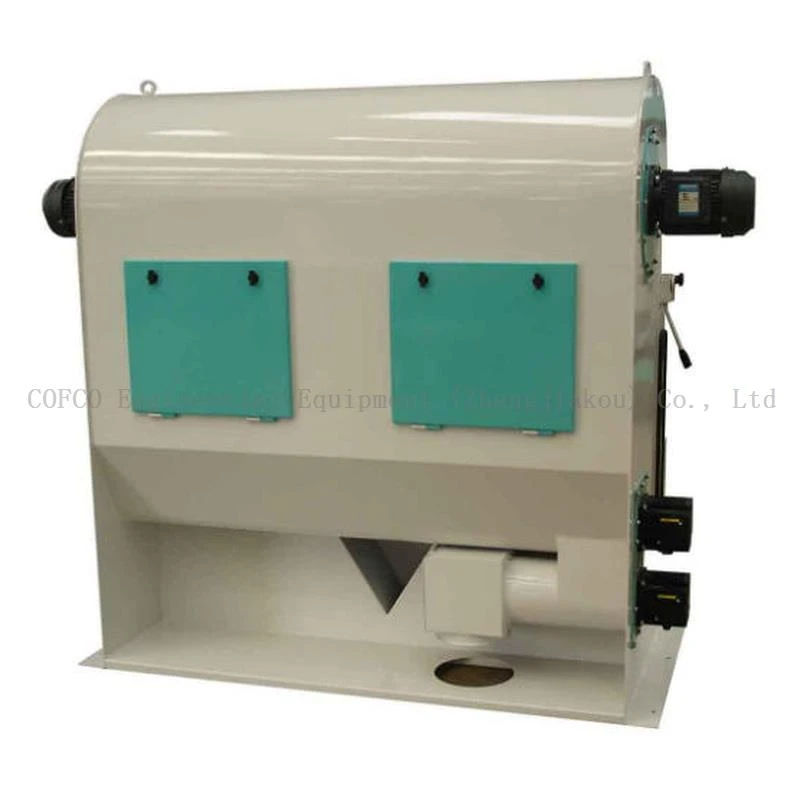

Circulation separator used in grain cleaning processes, this equipment recycles airflow and serves as an energy-efficient air separation and dust removal system for removing light impurities from grain.
Features
The system adopts air Circulation separator, improving energy efficiency while effectively removing light impurities from grain.
Circulation separator is equipped with a double light-impurity screw conveyor and axial pressure sealing discharge mechanism, which fundamentally eliminates common issues such as screw blockage and poor air sealing.
A specially designed feeding mechanism reduces mechanical failures commonly found in conventional systems.
The enlarged dust settling chamber significantly improves dust removal efficiency and overall cleaning performance.
|
Model |
Capacity t/h |
Power kw |
Weight kg |
Dimension (LxWxH) mm |
|
|
Pre-Cleaning |
Cleaning |
||||
|
BFXH60 |
9 |
40 |
2.25 |
450 |
1066x1000x1680 |
|
BFXH80 |
12 |
50 |
2.25 |
490 |
1266x1000x1680 |
|
BFXH100 |
16 |
65 |
2.25 |
560 |
1466x1000x1680 |
|
BFXH125 |
20 |
83 |
2.25 |
600 |
2116x1000x1680 |
|
BFXH150 |
24 |
100 |
3.75 |
710 |
2346x1000x1680 |
|
BFXH180 |
28 |
105 |
3.75 |
820 |
2666x1000x1680 |
|
BFXH200 |
32 |
130 |
5.15 |
990 |
2866x1000x1680 |
|
BFXH250 |
40 |
160 |
5.15 |
1160 |
3266x1000x1680 |
|
BFXH300 |
60 |
200 |
5.15 |
1390 |
3766x1000x1680 |
