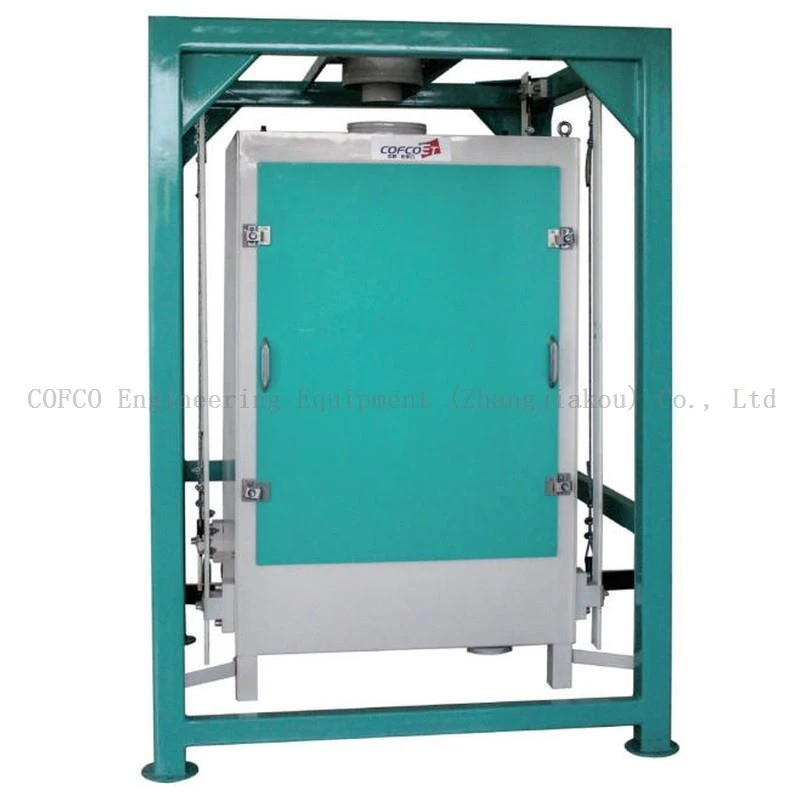

Control sifter
Suitable for grading and sifting various powdered and granular materials. Control sifter is widely used in industries such as flour milling, feed processing, corn processing, food production, pharmaceuticals, starch processing, and chemical manufacturing.
Features
The Control sifter body is fabricated from high-quality high-strength steel plates through bending and welding, providing excellent strength and low internal stress.
The sieve frames are fully enclosed, offering performance comparable to a large-scale plansifter.
The sieve frames are easy to assemble and disassemble, allowing flexible flow sheet arrangements according to customer requirements while providing a large screening area.
Independent vertical and horizontal clamping systems ensure firm and reliable sealing, effectively eliminating product leakage and cross-contamination between passages.
The Control sifter has a wide range of applications and is suitable for flour, feed, pharmaceutical, chemical, starch, and many other industries.
|
Specification |
FSFG1×10×100 |
FSFG1×10×120 |
FSFG2X10X100 |
|
Bins |
1 |
1 |
2 |
|
Sieve Box Spec.(mm) |
1000x1000 |
1200x1200 |
1000×1000 |
|
Max Sieve Box QTY |
8~12 |
10～12 |
8~12 |
|
Max Sieve Area (m2) |
7.9~9.5 |
11.0~13.3 |
15.8~19 |
|
Main Shaft Speed (rpm) |
270 |
270 |
245 |
|
Diameter Of Gyration (mm) |
33~38 |
33~38 |
45~50 |
|
Weight (kg) |
1000 |
1300 |
1700 |
|
Power (kw) |
1.5 |
2.2 |
2.2 |
|
Effective Sieve Height (mm) |
1180 |
1300 |
1160~1190 |
