Product Description

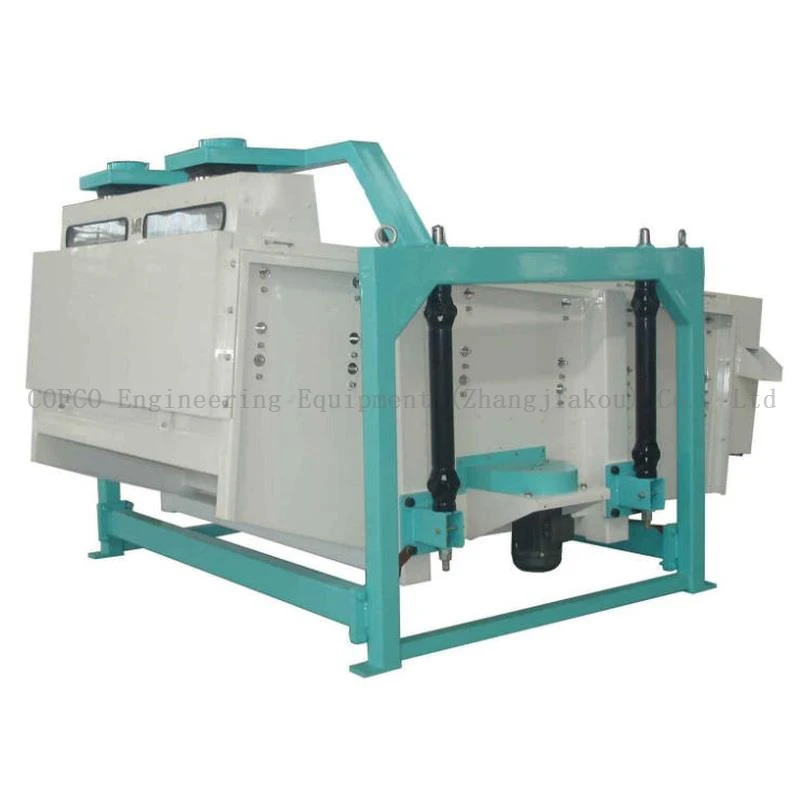

The Oscillating Separator is mainly used for cleaning and grading raw materials in the flour milling, feed processing, rice milling, chemical, food processing, and oil extraction industries. By replacing screens with different perforation sizes, the Oscillating Separator can effectively clean and classify various granular materials such as wheat, maize (corn), paddy rice, and oilseeds.
Features
Simple and reliable structure with stable operation.
Low noise level and low power consumption.
Excellent sealing performance, preventing material leakage and dust emission.
Easy operation and convenient maintenance.
An ideal solution for raw material cleaning and grading applications
When equipped with an aspiration system, the Oscillating Separator can efficiently remove light impurities. The machine operates under negative pressure, ensuring a dust-free working environment without dust leakage.
| Model |
Capacity (Wheat) t/h |
Power kw |
Air Volume m3/min |
Weight kg |
Sieve Dimension (WxL) mm |
Dimension (LxWxH) mm |
|
TQLX150×200G×3 |
20/35 |
3 |
115 |
2100 |
1500×2000 |
2545×2209×2040 |
|
TQLX150×250G×2 |
25/45 |
3 |
115 |
2160 |
1500×2500 |
3041×2210×2040 |
|
TQLX150×250G×3 |
30/50 |
3 |
125 |
2270 |
1500×2500 |
3041×2210×2050 |
|
TQLX180×250G×2 |
30/50 |
3 |
160 |
2400 |
1800×2500 |
3041×2510×2040 |
|
TQLX180×250G×3 |
40/60 |
4 |
160 |
2580 |
1800×2500 |
3041×2510×2056 |
|
TQLX200×250G×2 |
40/60 |
4 |
160 |
2700 |
2000×2500 |
3041×2732×2075 |
|
TQLX200×250G×3 |
45/70 |
4 |
160 |
2900 |
2000×2500 |
3041×2732×2091 |
|
TQLX200×300G×2 |
50/80 |
4 |
170 |
2910 |
2000×3000 |
3541×2732×2075 |
|
TQLX200×300G×3 |
70/110 |
5.5 |
170 |
3280 |
2000×3000 |
3541×2732×2136 |
|
TQLX200×360G×2 |
80/120 |
5.5 |
170 |
3300 |
2000×3600 |
4135×2732×2155 |
|
TQLX200×360G×3 |
100/130 |
5.5 |
170 |
3600 |
2000×3600 |
4136×2732×2199 |
