Application
This grain hammer pulverizer is used for crushing various granular crop materials such as corn, sorghum, wheat, beans, pressed cake products, and other similar materials.
Features

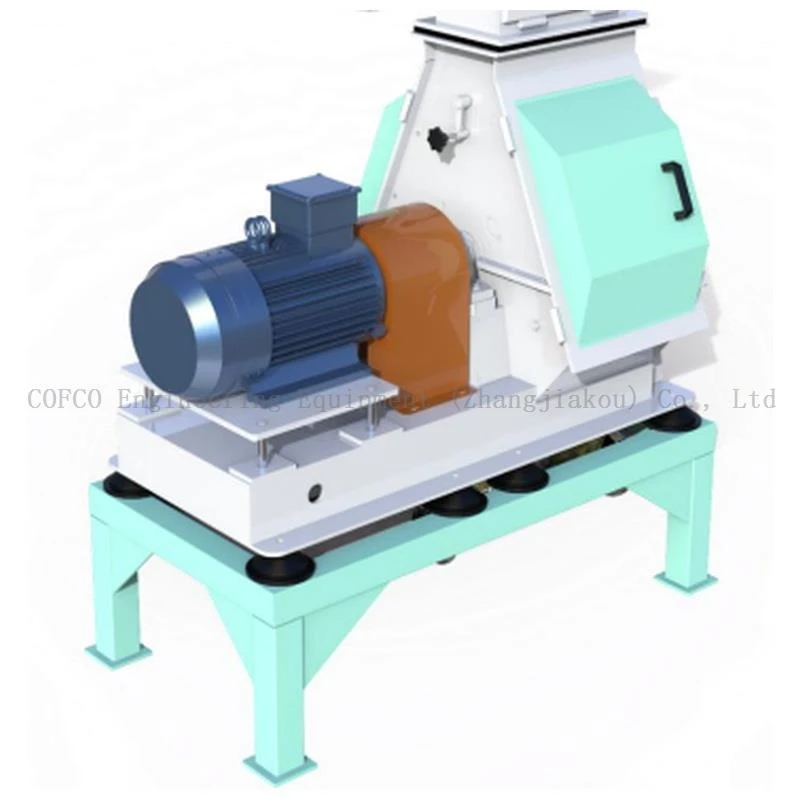

The series adopts a welded steel structure, with the motor and grain hammer pulverizer rotor mounted on the same base. It uses a pin coupling for direct drive transmission. The rotor is dynamically balanced and capable of forward and reverse operation.
The feed inlet is located at the top of the machine and can be matched with various feeding systems. Hammer blades are arranged symmetrically for stable crushing performance.
The grain hammer pulverizer features a simple and reliable structure, durability, easy installation, convenient operation, minimal vibration, and high productivity.
|
Specification |
SFSP66x100 |
SFSP66x80 |
SFSP66x60 |
SFSP56x40 |
SFSP56x23 |
|||||||
|
Rotor Diameter (mm) |
660 |
660 |
660 |
560 |
560 |
|||||||
|
Crushing Chamber Width (mm) |
1000 |
800 |
600 |
400 |
230 |
|||||||
|
Speed (rpm) |
2950/1450 |
2950/1450 |
2950 |
2950 |
2950 |
|||||||
|
Linear Velocity (m/s) |
84/42 |
84/42 |
84 |
86 |
86 |
|||||||
|
Beater QTY |
132 |
108 |
88 |
36 |
16 |
|||||||
|
Power (kw) |
250/220/200 |
185/160/132 |
110 |
90/75 |
55 |
45 |
37/30 |
22/18.5 |
15 |
11 |
||
|
Dimension (mm) |
2750x1170x1315 |
2450x1060x1185 |
2220x1060x1185 |
1375x838x1010 |
1260x838x1010 |
|||||||
|
Air Volume (m³/min) |
98 |
85 |
72 |
60 |
50 |
43 |
35 |
32 |
30 |
28 |
||
|
Weight (kg) |
2500 |
2250 |
1950 |
1600 |
1500 |
1300 |
700 |
680 |
650 |
600 |
||
