Application

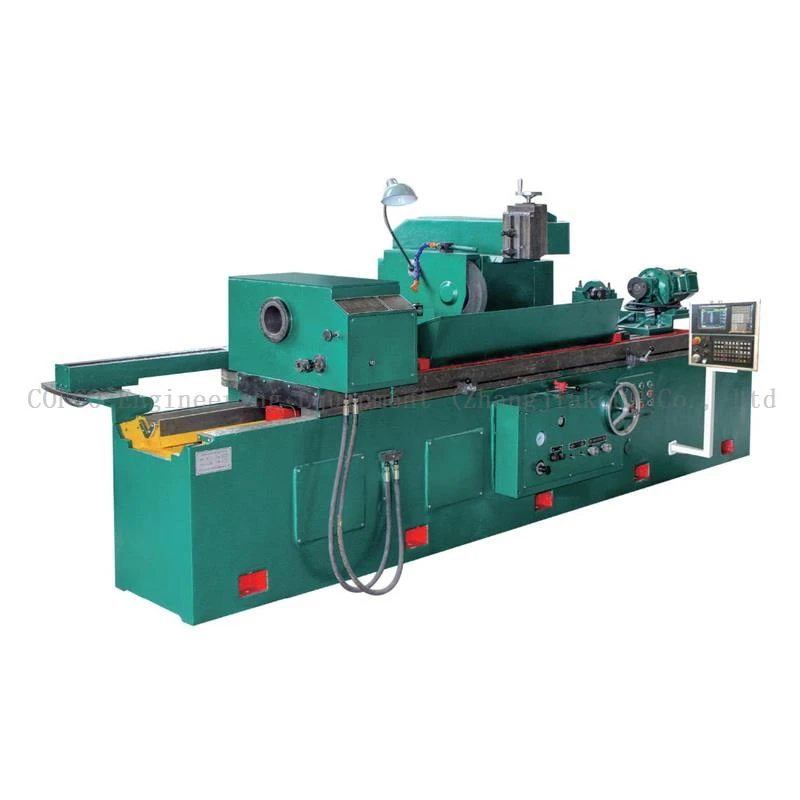

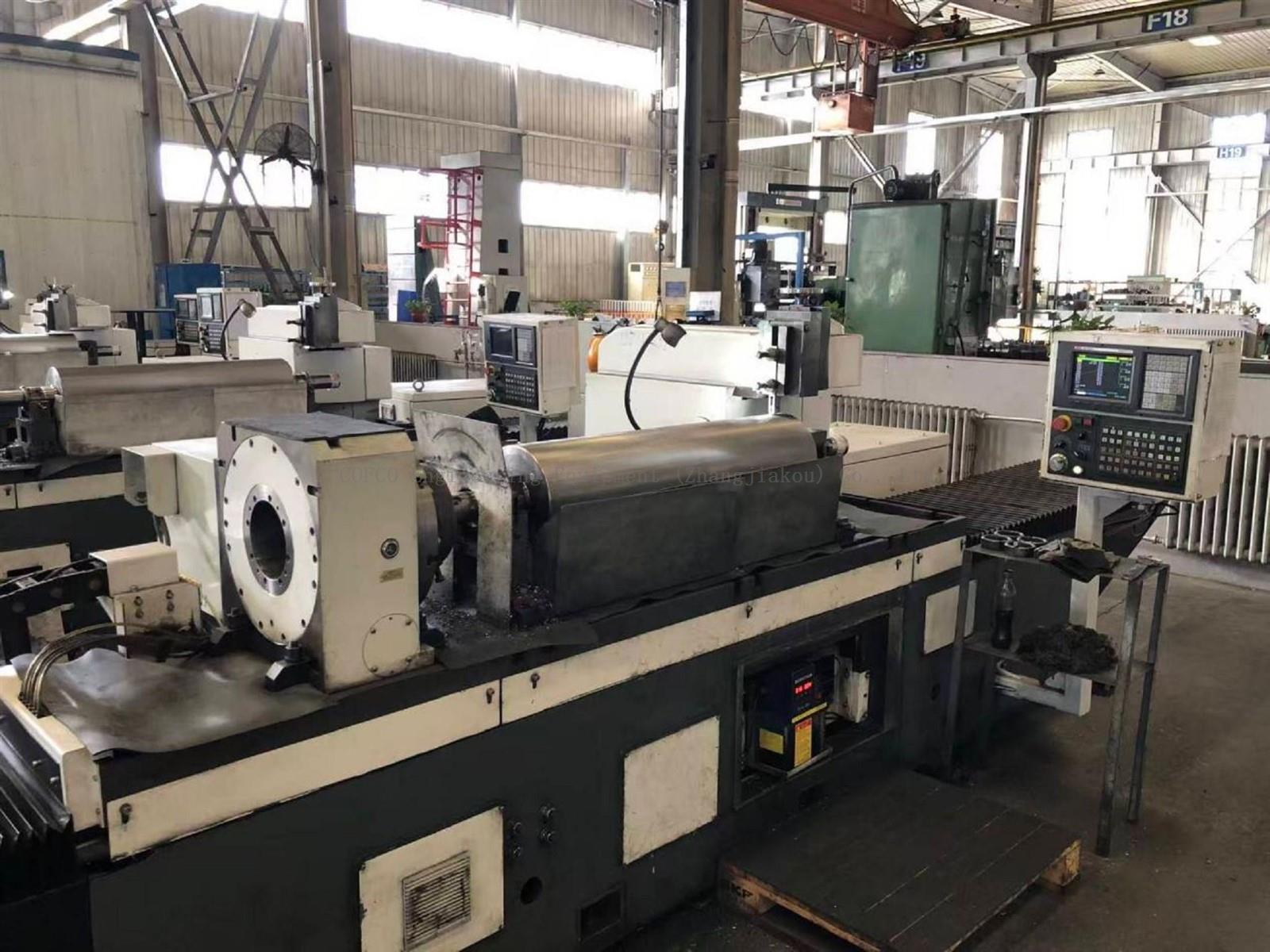

The NCLS125A CNC Electrical Fluting machine is a dedicated equipment for fluting medium and large-sized roller mill grinding rolls. It is widely used in flour milling plants for precision grooving and reconditioning of grinding rolls, ensuring consistent milling performance and extended service life of roller mill components.
The Electrical Fluting machine consists of the machine body, worktable, intelligent indexing head, mechanical transmission system, NC control system, and lubrication system, all designed with an optimized and compact structure.
Features
The worktable is mechanically driven, ensuring smooth movement, fast operating speed, and high production efficiency.
The CNC-controlled indexing head provides simple structure, uniform indexing, easy adjustment, and reliable operation.
Optimized use of Electrical Fluting machine space with integrated lubrication system, providing good sealing performance and an aesthetically compact structure.
Worktable reciprocating motion, roller indexing, tool lifting, and guideway lubrication are all controlled by CNC automation, improving machining accuracy, automation level, and working conditions while enhancing fluting quality.
High level of integration enables single-operator multi-machine operation, significantly improving production efficiency and supporting modernized production management.
|
ID |
Item |
||
|
Power Supply |
380V / AC / Three-phase four-wire system |
||
|
Air Supply |
0.5 MPa / pneumatic floating ±5 MPa |
||
|
1 |
Processing Speed |
Z-axis motor (worktable) |
X-axis motor (indexing head) |
|
1500 rpm |
1500 rpm |
||
|
Worktable speed |
Indexing speed |
||
|
0.25 m/s |
100°/s |
||
|
2 |
(Grinding roll diameter × grinding roll length × shaft end diameter) |
||
|
Φ230–Φ350 mm × 1250 mm × 70 mm |
|||
|
Grinding Roll Taper |
12.5% (8:1) |
||
|
Grinding Roll Tooth Count |
225–1500 teeth/circumference |
||
|
Center Height Of MachineBed |
230mm |
||
|
Maximum Stroke Of Worktable |
1200 (1400) mm |
||
|
Grinding Roll Speed |
85 rpm |
||
|
Machine Dimensions |
4496 × 1877 × 1467 mm |
||
|
Machine Weight |
6000 kg |
||
|
Lubrication Points |
9 points |
||
|
Oil Consumption |
0.3 ml per lubrication cycle per point |
||
