Application

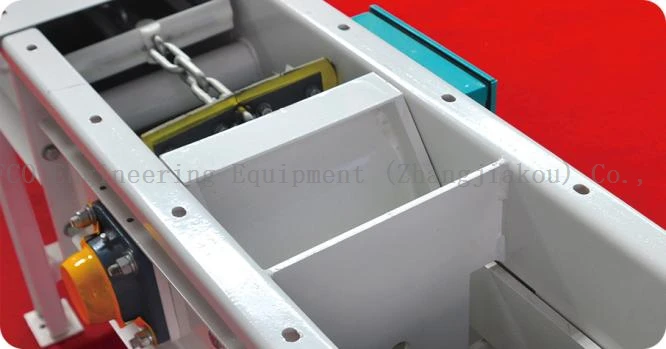

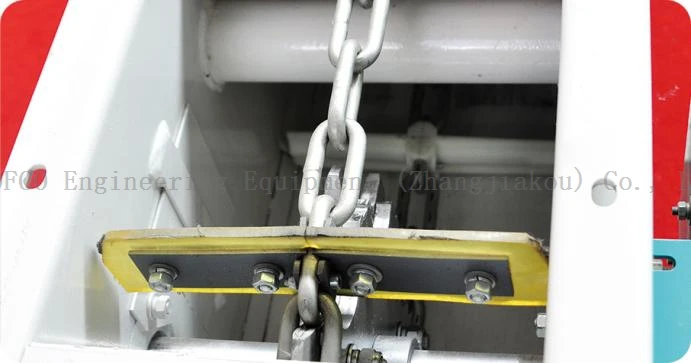

This grain scraper conveyor uses a light-duty chain with scraper flights as the traction component to continuously drag and convey materials inside a trough, achieving continuous material transport.
Grain scraper conveyor is widely used for horizontal, slightly inclined, or inclined conveying of large volumes of bulk granular materials. It is commonly applied in grain storage facilities, ports, grain processing plants, chemical industries, and other bulk material handling operations.
Features
The grain scraper conveyor features a simple overall structure with excellent sealing performance and a wide range of applications, suitable for various materials.
It can operate in horizontal or inclined conveying (≤15°), with multi-point feeding and multi-point discharging available, offering flexible process layout.
Equipped with anti-overflow and speed monitoring alarm devices to ensure safe and reliable operation.
Self-cleaning design minimizes material residue and improves hygiene and efficiency.
All steel plates used are made of high-quality materials, ensuring durability and structural strength.
|
Model |
Effective Area mm² |
Chain Speed m/s |
Capacity t/h |
Angle |
Conveying Length mm |
|
Wheat 0.75t/m³ |
|||||
|
TGSS16 |
160*160 |
0.3～0.6 |
15～30 |
≤15° |
35 |
|
TGSS20 |
200*200 |
0.3～0.6 |
25～40 |
≤15° |
35 |
|
TGSS25 |
250*250 |
0.3～0.6 |
40～70 |
≤15° |
35 |
|
TGSS32 |
320*320 |
0.3～0.6 |
60～120 |
≤15° |
35 |
|
TGSS40 |
400*400 |
0.3～0.6 |
80～150 |
≤15° |
35 |
|
TGSS60 |
600*600 |
0.3～0.6 |
200～400 |
≤15° |
35 |
