Application

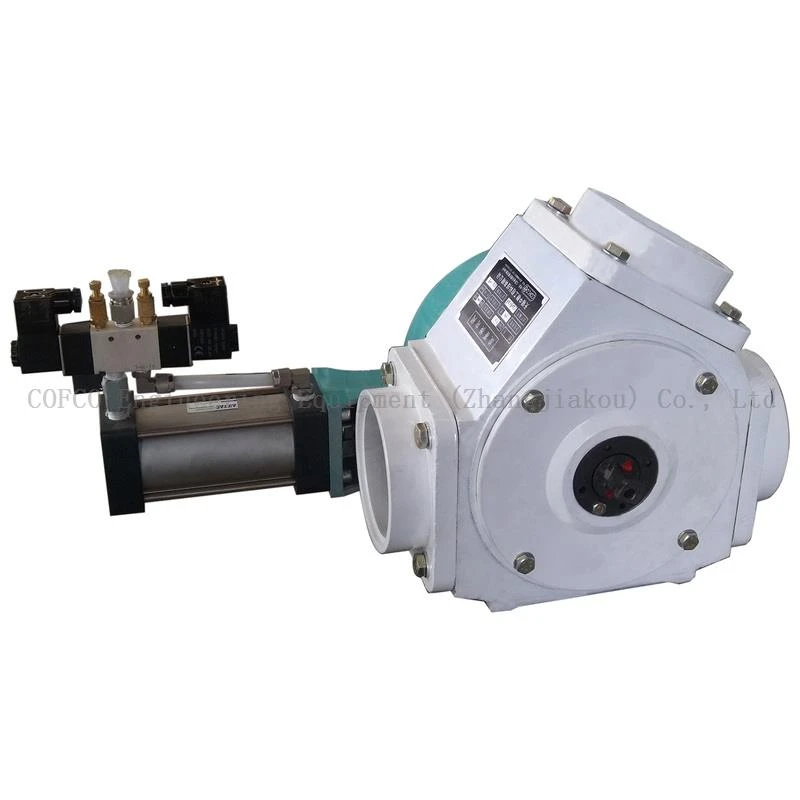

The pneumatic two way diverter is mainly used in pneumatic conveying systems for switching material flow direction. It enables the redirection of materials in conveying pipelines without interrupting feeding or air supply, allowing the material to be conveyed to one of two selected destinations.
When multiple valves are combined, materials can be distributed to multiple discharge points, providing highly flexible system layout. It is widely used in flour mills, feed mills, starch plants, grain processing facilities, sugar industries, and chemical and plastic powder conveying systems under both positive and negative pressure conveying conditions, as well as low-velocity pneumatic conveying systems.
Features
The pneumatic two way diverter is designed for reliable switching of material flow direction in pneumatic conveying systems without interrupting operation.
Capable of pneumatic two way diverter to two or multiple selected discharge points when used in combination.
Suitable for a wide range of materials including flour, bran, starch, grain, feed, sugar, chemical powders, and plastic powders.
High-precision investment casting (lost-wax metal mold process) ensures excellent dimensional accuracy and durability.
The valve core rotates smoothly inside the housing, ensuring tight sealing with no leakage or cross-contamination.
Reliable structure designed for both positive and negative pressure conveying systems with stable performance and easy operation.
|
Model |
DN mm |
Duct Angle |
Heat Ttemp. ℃ |
Pressure kpa |
Cylinder |
|||
|
Suction |
Pressure Feed |
Low Pressure Convey |
Dia/Stroke mm |
Working Pressure mpa |
||||
|
THFX6.5x2 |
65 |
60° |
100 |
50 |
100 |
400 |
50/100 |
0.4-0.6 |
|
THFX8x2 |
80 |
50/100 |
||||||
|
THFX10x2 |
100 |
63/100 |
||||||
|
THFX12x2 |
125 |
80/125 |
||||||
|
THFX15x2 |
150 |
100/125 |
||||||
|
THFX18x2 |
175 |
100/125 |
||||||
