Application

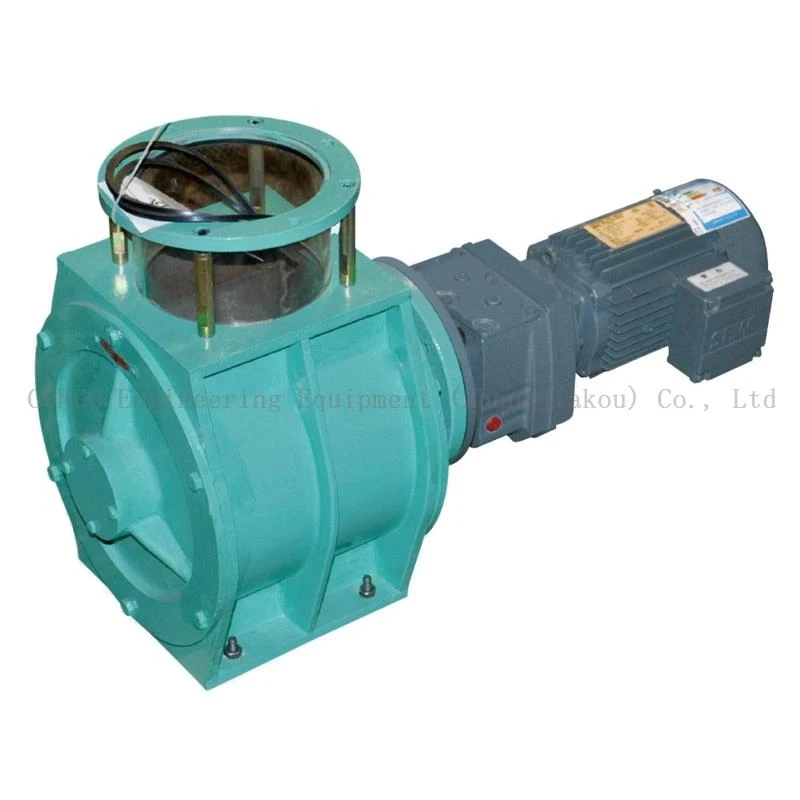

The rotary vane discharge valve is used in pneumatic conveying systems for material discharge. rotary vane discharge valve can be used as a single unit or in combination with multiple airlocks, and is commonly applied for discharging materials from cyclones and dust collectors.
Features
The rotary vane discharge valve offers excellent sealing performance with high manufacturing precision, effectively reducing air leakage and lowering energy consumption.
Robust design ensures stable operation and wear resistance, reducing maintenance costs.
Equipped with anti-blocking holes on the end cover to prevent material clogging.
Compact structure allows complete discharge of materials, minimizing residue and ensuring hygienic operation conditions.
|
Model |
TGFY5 |
TGFY7 |
TGFY9 |
|
Capacity l/rev |
5 |
7 |
9 |
|
Speed rpm |
45 |
48 |
48 |
|
Weight kg |
47 |
60 |
77 |
|
Dimension mm |
376x290x435 |
410x310x463 |
460x310x463 |
